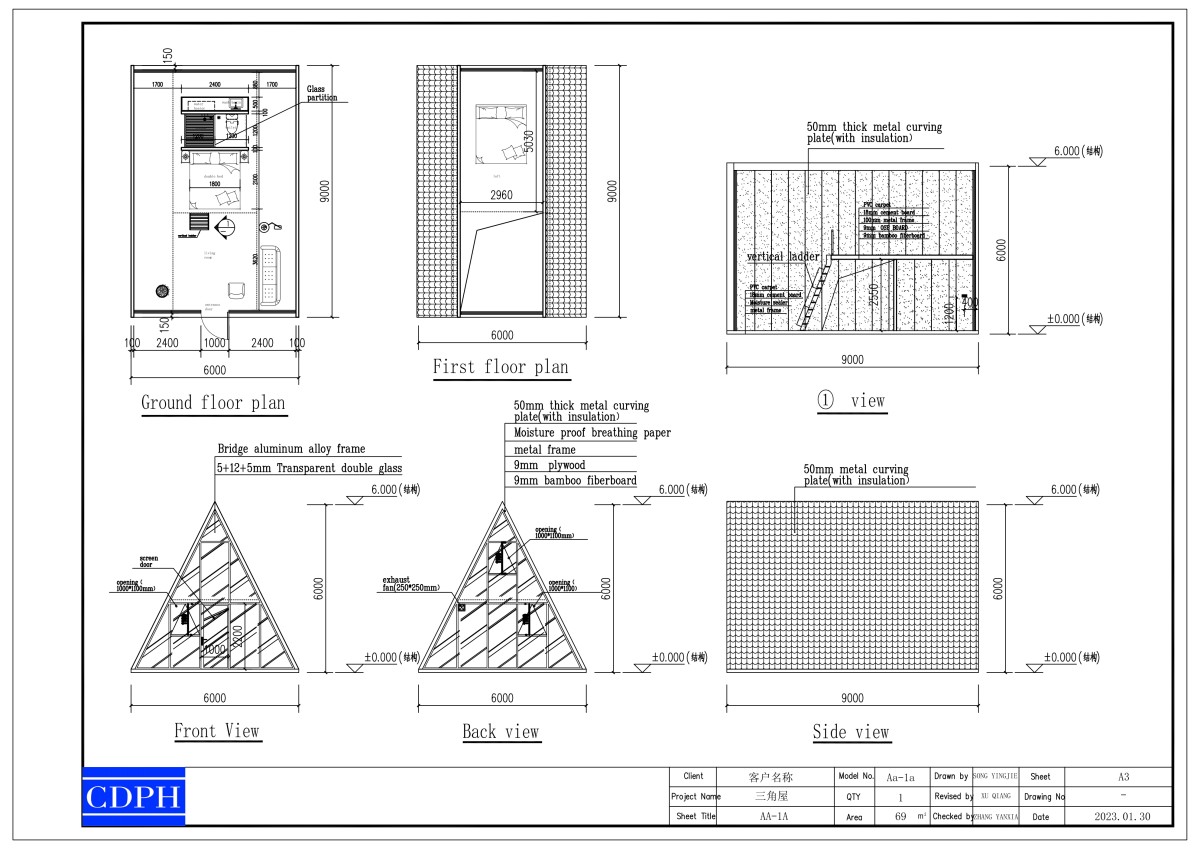

| Profile | L*H*W(mm) | 6000*9000*6000mm |
| Roof Type | Pitched roof with natural drainage system. | |
| Number of Floors | Two floor | |
| Area | Total 68.8㎡ (first floor 54㎡, second floor 14.8㎡) | |
| Parameters | Designing Life-span | 20years |
| Foor Loading | 2.0KN/㎡ | |
| Roof Loading | 0.5KN/㎡ | |
| Wind Loading | 0.45KN/㎡ | |
| Snow Loading | 0.5KN/㎡ | |
| Roof Frame | Roof Beam | Size: 100*100*2.5mm, galvanized square steel pipe, t=3.0mm, steel profile Q235 |
| Roof Purlin | Size: 50*100*1.5mm, galvanized C-shape steel, t=2.0mm, steel profile Q235 | |
| Floor Frame | Floor Main Beam | Size: 100*100*2.5mm, galvanized square steel pipe, t=3.0mm, steel profile Q235 |
| Floor Purlin | Size: 50*100*1.5mm, galvanized C-shape steel, t=2.0mm, steel profile Q235 | |
| Roof Decoration | Metal Carved Board (External) | 50mm thickness(including insulation), brick gray color, standard brick grain. |
| Moisture-proof Breathing Paper | 0.5mm thickness | |
| OSB Board (Internal) | 9mm thickness, E1 level environmental protection | |
| Bamboo Fiberboard (Decorative Surface) | 9mm thickness with yellow wood grain color,E1 level environmental protection | |
| Ground Floor Decoration | Floor Moisture-proof Pad | Pearl cotton double core aluminum film moisture-proof film |
| Cement Board | 18mm thickness | |
| PVC Carpet | 2mm thickness | |
| First Floor Top Surface Decoration | OSB Board | 9mm, E1 level environmental protection |
| Bamboo and Wood Fiber Board | 9mm thickness with yellow wood grain color, E1 level environmental protection | |
| Second Floor decoration | Cement Board | 18mm thickness |
| PVC Carpet | 2mm thickness | |
| Internal Partition | Structure | Galvanized square steel pipe 50*50*1.5mm, galvanized square steel pipe 50*30*1mm |
| Surface Decoration(Two Sides) | 9mm thickness OSB Board and 9mm thickness bamboo wood fiber board (yellow wood grain color) | |
| Aluminum Alloy Doors and Windows(Front and Rear) | Size(mm) | Door: Width X Height=1000*2200mm with screen door. Window: 1000*1100mm with mosquito-proof net |
| Material | Aluminum alloy frame | |
| Glass | Transparent tempered double glass 4+9+4mm | |
| Interior Decoration | Exhaust Fan | Fixed on the rear glass |

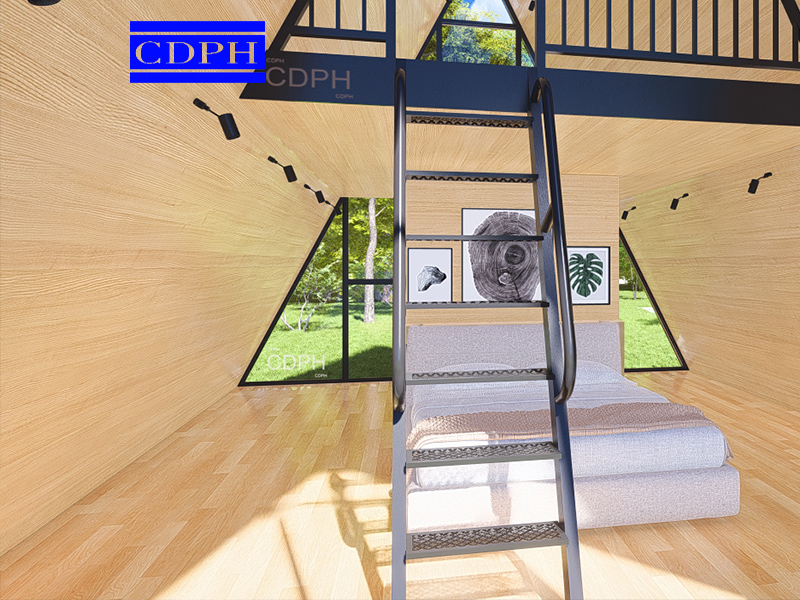

| Ladder | Aluminum alloy ladder | |
| Bathroom | White toilet, frosted glass partition | |
| Shower Room | Shower mixer, shower tray, frosted glass partition | |
| Hardware Accessories | Towel rack, paper holder, soap holder | |

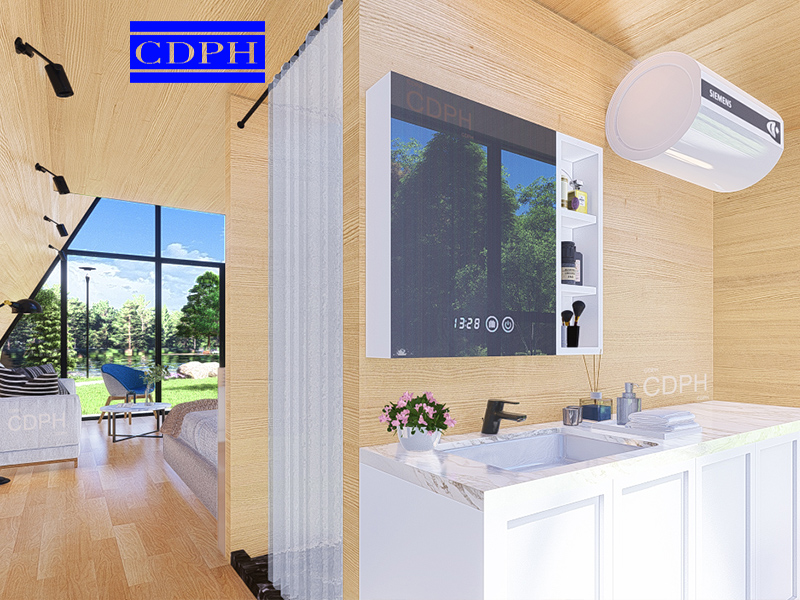

| Wash Basin Cabinet Integrated Countertop | Size: 2400*500mm, cabinet with mirror, white cabinet, marble countertop |
