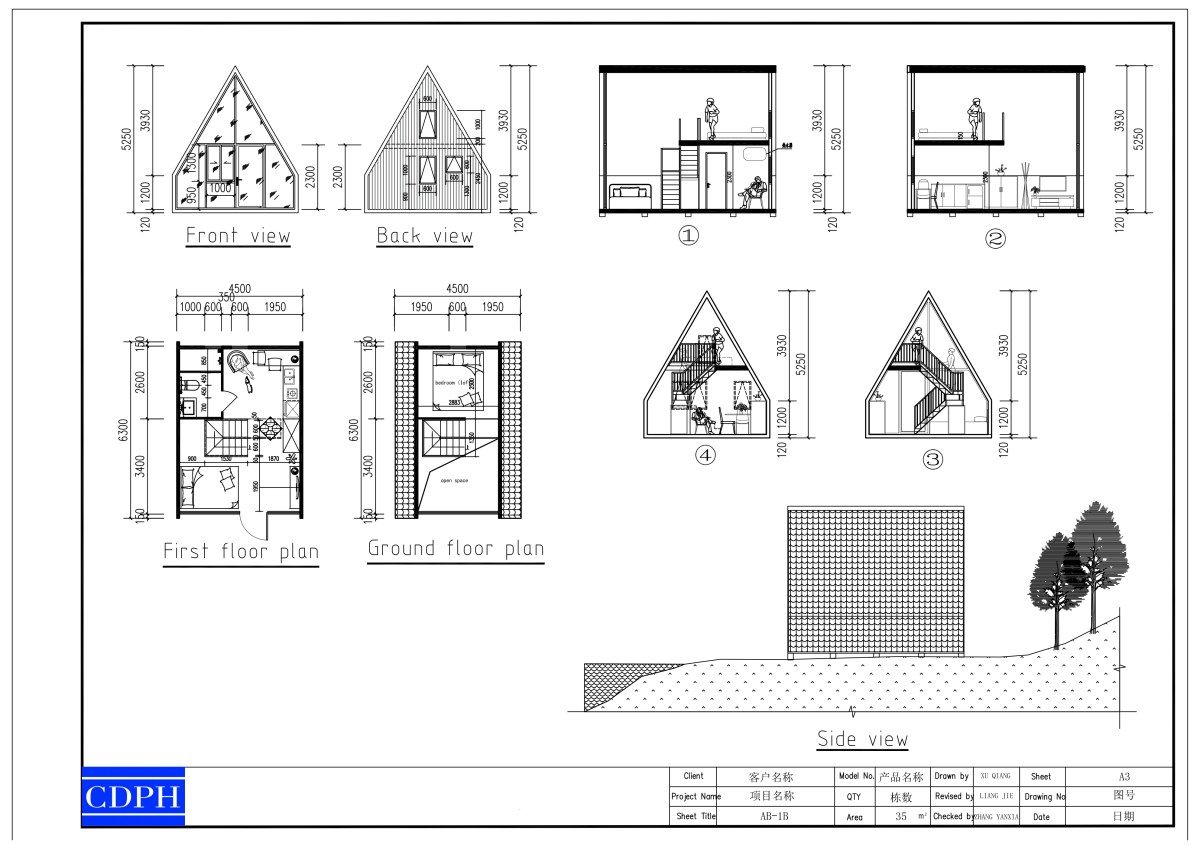

| Profile | L*H*W(mm) | 4500*6300*5250mm |
| Roof Type | Pitched roof with natural drainage system. | |
| Number of Floors | Two floor | |
| Area | 35㎡ (first floor 28㎡, second floor 7㎡) | |
| Parameters | Designing Life-Span | 20 years |
| Foor Loading | 2.0KN/㎡ | |
| Roof Loading | 0.5KN/㎡ | |
| Wind Loading | 0.45KN/㎡ | |
| Snow Loading | 0.5KN/㎡ | |
| Roof Frame | Roof Main Beam | Size: 80*80*2.5mm, galvanized square steel pipe, t=2.5mm, steel profile Q235B |
| Roof Purlin | Size: 40*80*1.5mm, galvanized C-shape steel, t=1.5mm, steel profile Q235B | |
| Ground Floor Frame | Floor Main Beam | Size: 80*80*2.5mm, galvanized square steel pipe, t=2.5mm, steel profile Q235B |
| Floor Purlin | Size: 40*80*1.5mm, galvanized square steel pipe, t=1.5mm, steel profile Q235B | |
| Second Floor Frame | Floor Main Beam | Size: 80*80*2.5mm, galvanized square steel pipe, t=2.5mm, steel profile Q235B |
| Floor Purlin | Size: 40*80*1.5mm, galvanized square steel pipe, t=1.5mm, steel profile Q235B | |
| Wall Frame | Wall Column | Size: 100*100*3mm, galvanized square steel pipe, t=3mm, steel profile Q235B |
| Wall Purlin | Size: 50*100*1.5mm, galvanized C-shape steel, t=1.5mm, steel profile Q235B | |
| Roof (Wall) Decoration | Metal Carved Board (External) | 50mm thickness(including insulation), brick gray color, standard brick grain. |
| Moisture-proof Breathing Paper | 0.5mm thickness | |
| OSB Board (Internal) | 9mm thickness,E1 level environmental protection | |
| Bamboo and Wood Fiber Board (Interior Finish) | 9mm thickness with yellow wood grain color,E1 level environmental protection | |
| Ground Floor Decoration | Floor Moisture-proof Pad | Pearl cotton double core aluminum film moisture-proof film |
| Cement Board | 18mm thickness | |
| PVC Carpet | 2mm thickness | |
| First Floor Top Surface Decoration | OSB Board | 9mm thickness,E1 level environmental protection |
| Bamboo and Wood Fiber Board | 9mm thickness with yellow wood grain color,E1 level environmental protection | |
| Second Floor Decoration | Cement Board | 18mm thickness |
| PVC Carpet | 2mm thickness | |
| Internal Partition | Structure | Size: 50*50*1.5mm, galvanized square steel pipe, t=1.5mm, 30*50*1mm, galvanized square steel pipe, t=1mm(purlin) |
| Surface Decoration(Two Sides) | 9mmOSB board+9mm thickness bamboo and wood fiber board (yellow wood grain color) | |

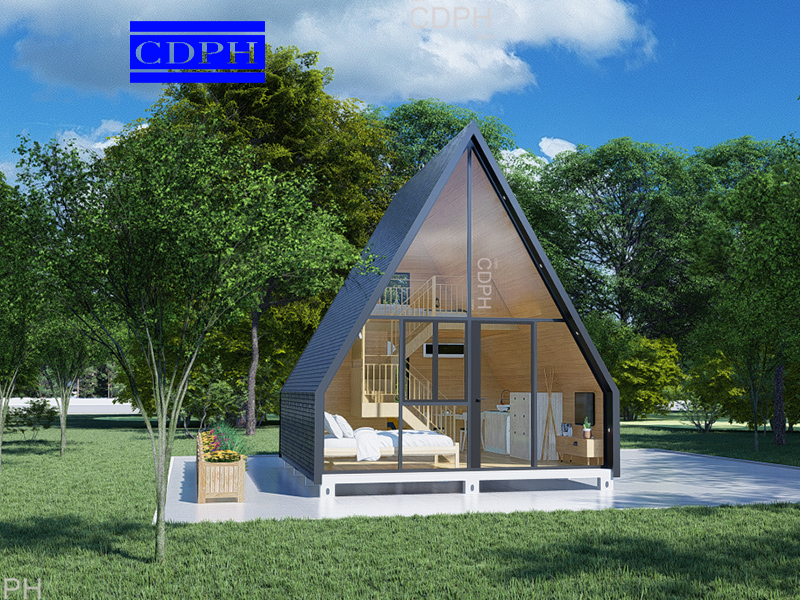

| Front Wall | Broken bridge Aluminum Panoramic Glass Doors and Windows | Aluminum alloy frame,4+9+4 coated tempered glass,door:1000*2200 with mosquito-proof net; Sliding window: 1000*1300 with screen window |
| Back Wall | Complex Wall | Steel keel+OSB board,external metal carved board (50mm thickness, brick gray, standard brick pattern),Interior hanging bamboo fiberboard (9mm thickness, yellow wood grain color) |
| Aluminum alloy frame,upper hanging exterior window:650*1100,600*600 with screen window | ||
| Interior Decoration | Bathroom | White toilet (with tank), shower base (with shower curtain), shower mixer (black) |
| Basin | Size: 700mm*600mm, ceramic washbasin, with mirror cabinet | |
| Hardware Accessories | Towel rack, paper holder, soap holder | |

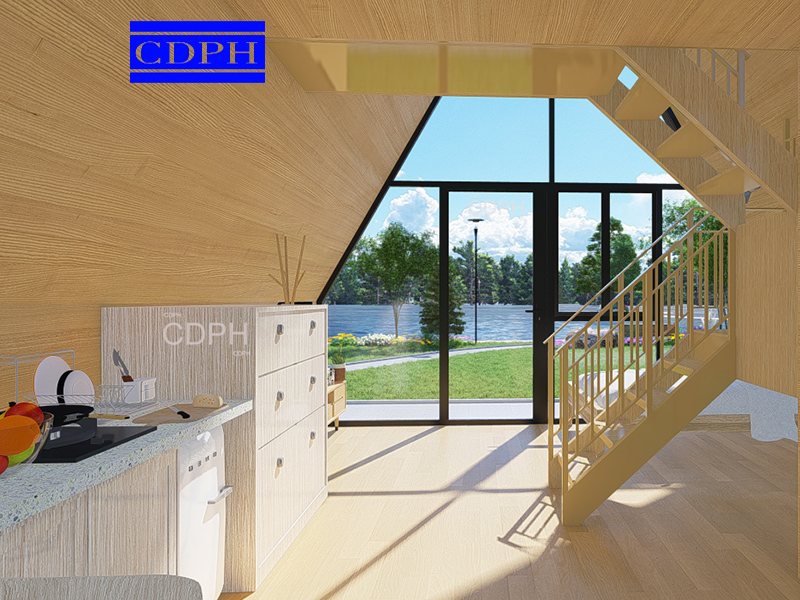

| Cupboard | Size: 1250mm*600mm, marble countertop, with stainless steel wash basin | |

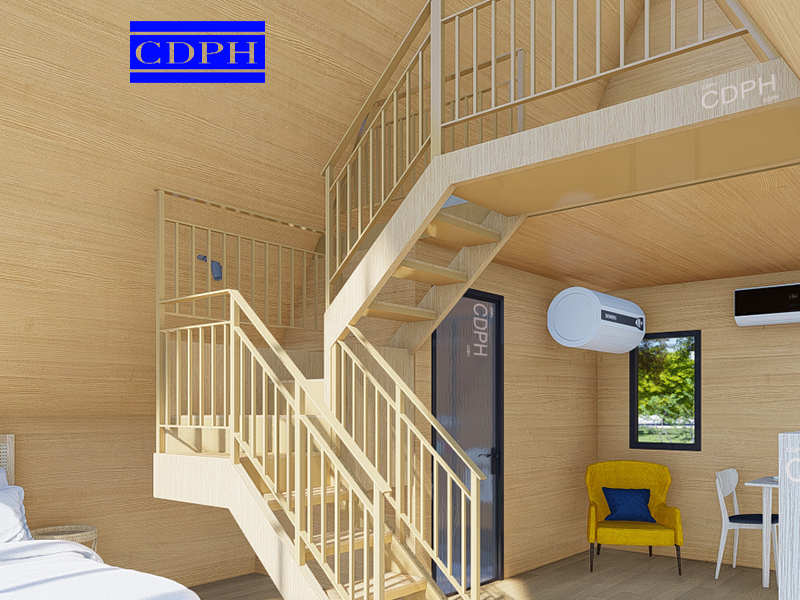

| Ladder | Double run steel stairs | |

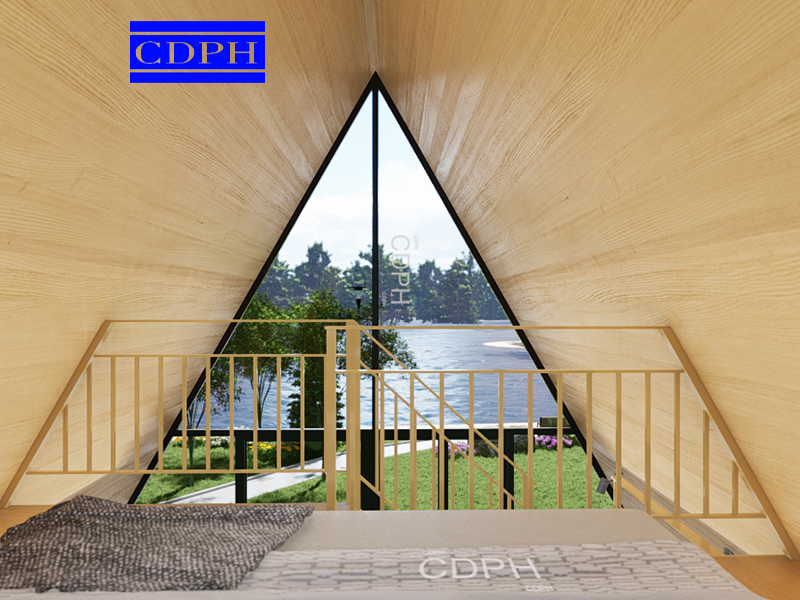

| Second Floor Railing | Size: 30mm*30mm*1mm, galvanized square steel pipe, t=1mm,grey white appearance |
